With 3:1 gear reduction, precision milled hobbed gearing and E3D engineering, we’ve developed Titan to push with awesome power, while also being incredibly light and compact.
The gear ratio means you’re able to use lighter motors as you’ll need less torque for the same filament pushing force – so direct drive systems have a lighter moving carriage, powerful, reliable little beasts when combined with your E3D V6 HotEnd.
Titan fits perfectly into E3D’s modular ecosystem, Titan works for all configurations of Bowden, direct extrusion, 1.75mm, and 3mm. To switch filament diameters only the filament guide needs to be swapped out, and both 3mm and 1.75mm versions are supplied with every Titan.
Extruders with high gear ratios often struggle with snappy retracts and keeping up with Volcano for big, fast printing. Titan’s balanced gearing ratio of 3:1 means that you can cope with fast extrusion situations like Volcano, and the lightweight gear-set gives snappy retractions.
Direct-drive extruders can have issues with ‘pulsing’ of flow because the lower resolution of filament motion results in filament being extruded in pulses. This results in a slightly wavy surface finish and is particularly prevalent when printing at low layer heights. Using 3:1 gearing triples the resolution of the system and allows for smooth printing at the lowest of layer heights, using the smallest of nozzles.
|PTFE Diameter (mm)||1.75|
|PTFE Length (mm)||110|
|Shipment Weight||0.275 kg|
|Shipment Dimensions||4 × 3 × 1 cm|

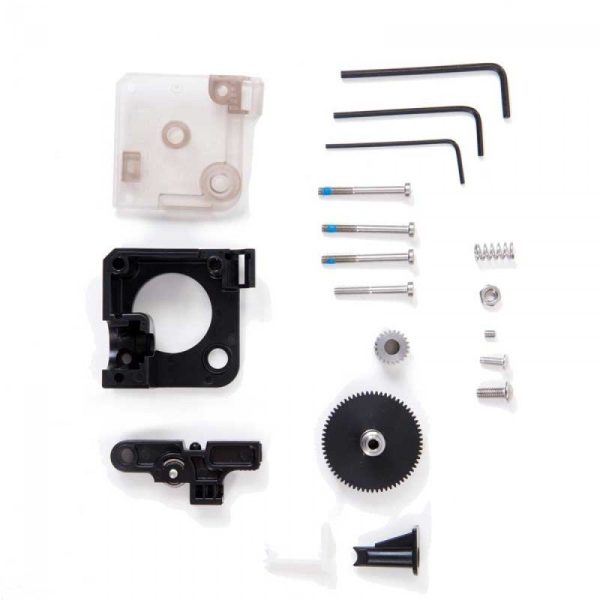

1 x E3D Titan Extruder Direct Drive 1.75mm
