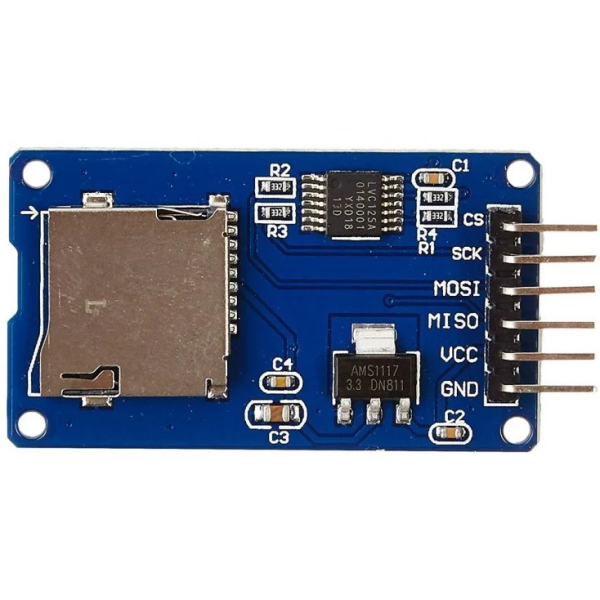

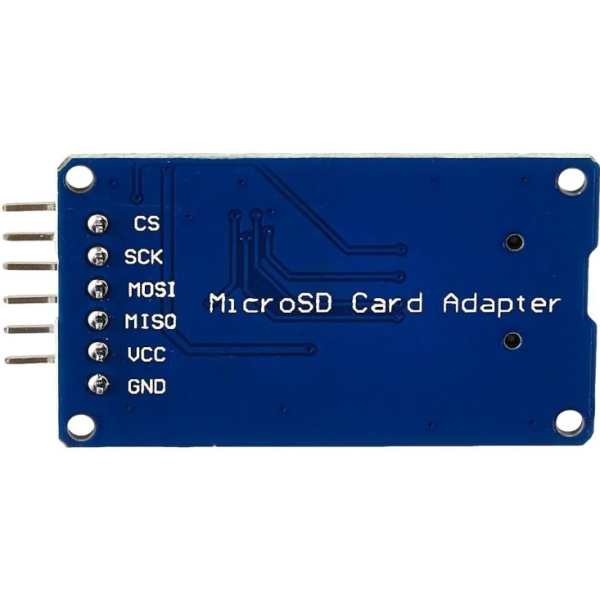

Micro SD Card Reader Module

₹80 incl. GST (exc. GST- ₹68 )

OVERVIEW
  • Power supply: 4.5V – 5.5V, 3.3V voltage regulator circuit board
  • Positioning holes: 4 M2 screws positioning hole diameter of 2.2mm
  • Control Interface: GND, VCC, MISO, MOSI, SCK, CS
  • Size: 45 x 28mm
  • Net weight: 4.2g

Out of stock

Add to wishlist
SKU: C05500 Category:
Description
Share

Micro SD Card Reader Module also called Micro SD Adaptor is designed for dual I/O voltages. This Module is a simple solution for transferring data to and from a standard SD card. The pinout is directly compatible with Arduino, but can also be used with other microcontrollers. This module has SPI interface which is compatible with any sd card and it use 5V or 3.3V power supply which is compatible with Arduino UNO/Mega.SD module has various applications such as data logger, audio, video, graphics.

SPECIFICATIONS



Input Supply Voltage (VDC) 4.5 ~ 5.5
Control Interface GND, VCC, MISO, MOSI, SCK, CS
Voltage Regulator 3.3V
PCB Size ( L x W ) 40 x 24 mm
Mounting Hole size M2
Weight (gm) 4.2
Additional information
Weight 0.0142 kg
Condition

New
Manufacturer Part Number C05500
EAN 8904000000377
