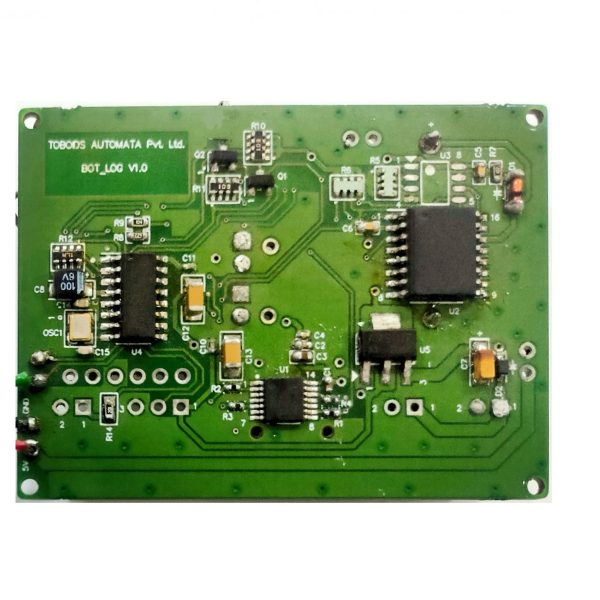

An IoT-based PCB board is a printed circuit board that incorporates Internet of Things (IoT) technology, allowing devices to connect and communicate with each other over the internet. This technology enables devices to collect and share data, perform analytics, and control connected devices remotely.
The board is equipped with cutting-edge features that make it stand out from traditional PCB boards. These features include built-in Wi-Fi, which allows devices to connect to the internet and communicate with other devices in real-time. The board also includes a dedicated clock, which ensures accurate timekeeping, and an SD card slot for expanded storage capabilities.
In addition, the board has provisions for attaching fingerprint sensors and actuators, which can be used for various applications, including security and automation. With Arduino support and a dedicated library, integrating the board into your project is made easier and faster.
One of the key benefits of the IoT-based PCB board is its versatility. The board can be used for a wide range of applications, including smart home automation, environmental monitoring, smart healthcare, smart retail, and smart agricultural applications. This makes it an ideal solution for businesses looking to capitalize on the potential of IoT technology and stay ahead of the competition.
In summary, an IoT-based PCB board is an advanced technology that enables devices to connect and communicate over the internet. With cutting-edge features, including built-in Wi-Fi, a dedicated clock, and provisions for fingerprint sensors and actuators, the board is versatile and can be used in a wide range of applications.
SPECIFICATIONS
| Model | BOT_LOG V1 |
| Power input | 4.5V ~ 9V (10VMAX), USB-powered |
| Transfer rate | 110-460800bps |
| Support | UART / GPIO data communication interface, Smart Link Smart Networking |
| Working temperature | -40°C ~ + 100°C |
| Drive Type | Dual high-power H-bridge |
| Flash size | 4MByte |
FEATURES
- Wireless 802.11 b/g/n standard
- Micro controller ESP series
- Wi-Fi at 2.4GHz, support WPA / WPA2 security mode
- Support STA/AP/STA + AP three operating modes
- Built-in TCP/IP protocol stack to support multiple TCP Client connections (5 MAX)
- Remote firmware upgrade (OTA)
- Support Smart Link Smart Networking
- Greatly speed up your IOT application developing process
- Built-in USB-TTL serial with super reliable industrial strength CH340G for superior stability on all supported platforms.
- Advanced API for hardware IO, which can dramatically reduce the redundant work for configuring and manipulating hardware.
- Inbuilt dedicated DS3221 clock IC for accurate time measures.
- Real time clock generator seconds, minutes, hours, day, date, month and year timing and provide valid until the year 2100 leap year compensation
- Chip temperature sensor comes with an accuracy of ± 3 ℃
- Memory chips: AT24C32 (storage capacity 32K)
- I2C bus interface, between clock and microcontroller the maximum transmission speed of 400KHz.
- SD card communicates with microcontroller via SPI interface.
